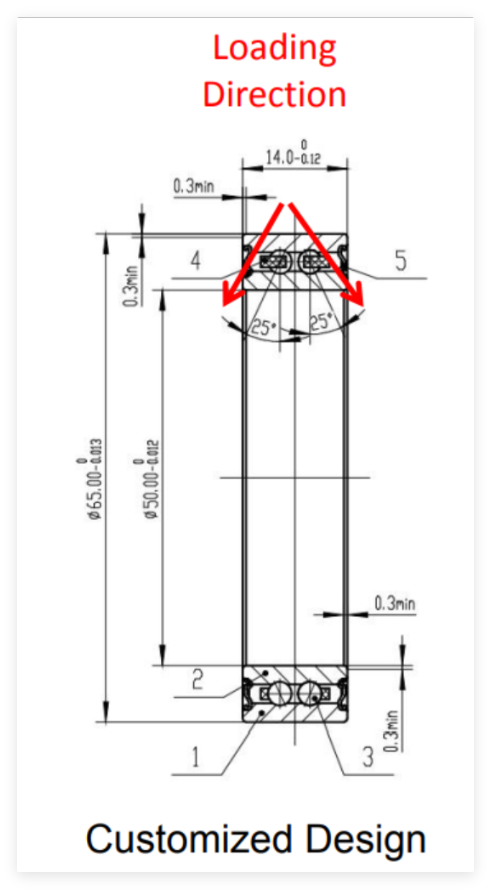

MTWB provides high-performance 6810-2RS bearings for agricultural machinery, delivering customized sealed bearing solutions for OEM equipment manufacturers and agricultural machinery suppliers worldwide. Designed for reliable operation in demanding farming environments, the Neovert Customized 6810-2RS Bearing offers excellent sealing performance, durability, and cost-effective performance as an alternative solution to premium international bearing brands. This customized bearing has been successfully applied in Kverneland Seeder applications, helping improve equipment reliability and service life. Learn more about our technical case: Neovert Customized 6810-2RS for Kverneland Seeder.
| Item | Specification |
|---|---|
Bearing Model | 6810-2RS Sealed Deep Groove Ball Bearing |
| Bearing Type | Single Row Deep Groove Ball Bearing with Double Rubber Seals |
| Structure | Inner Ring, Outer Ring, Steel Balls, Cage, Rubber Seals (2RS), Lubricating Grease |
Boundary Dimensions (mm) | 50 mm × 65 mm × 7 mm (Bore × Outer Diameter × Width) |
Bore Diameter (d) | 50 mm |
| Outer Diameter (D) | 65 mm |
| Width (B) | 7 mm |
| Bearing Weight | Approx. 0.065 kg / pcs |
| Seal Type | 2RS Double Contact Rubber Sealed Design |
Bearing Material | Chrome Steel (GCr15 / AISI 52100) or Customized Bearing Materials Available |
| Precision Grade | Standard P0; P6 / P5 Precision Available for Customized Requirements |
| Dynamic Load Rating (Cr) | Approx. 18 kN (Optimized Design) |
| Static Load Rating (Cor) | Approx. 28 kN(Optimized Design) |
Lubrication | Factory Filled Grease Lubrication, Maintenance-Free Design |
Operating Temperature | Standard: -20°C to +120°C (Customized High Temperature Version Available) |
Cage Options | Steel Cage / Customized Cage Options Available |
Application Range | Agricultural Machinery, Seeders, Planters, Harvesting Equipment, Industrial Equipment, Transmission Systems |
Typical Application | Kverneland Seeder Bearing Replacement, Agricultural Equipment Components |
Standard Availability | Standard 6810-2RS Bearings Available |
Customized Availability | OEM Customized Dimensions, Sealing Structure, Grease Type, Clearance, Precision Grade and Branding Available |
MTWB Solution Advantage | Cost-effective replacement bearing solution for international brands with customized engineering support |
MTWB supplies both standard and customized 6810-2RS bearings for agricultural machinery according to different OEM equipment requirements. While standard 6810-2RS bearings provide a reliable solution for general applications, customized versions can be developed with optimized sealing systems, special grease formulations, improved precision grades, and application-specific designs for harsh agricultural environments.
For agricultural machinery manufacturers and equipment maintenance providers, MTWB offers a flexible bearing solution that combines reliable performance, competitive cost, and engineering support. Our customized Neovert 6810-2RS bearing for Kverneland Seeder applications demonstrates our capability to develop application-focused bearing solutions beyond standard catalog products.
